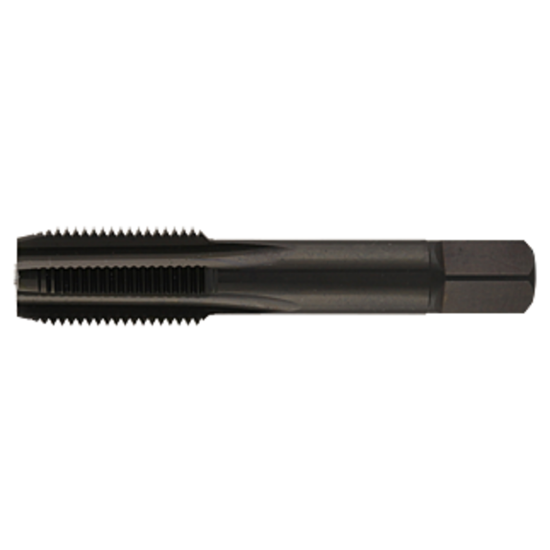

YMW 383304BR 3/8-18.00TPI Pipe Straight Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383304BR
Delivery date: 3-5 days
$61.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Package Size 1
Dimensional Specifications
Tap Style Pipe Straight Flute
Length Type Standard
Flute Direction STRAIGHT
Overall Len 2.5620 65.07MM
Thread Type NPSM/NPSF
Tool Material Steel
Thread Size 3/8"
Flutes/Inserts 4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.7000 17.78MM
Drill Range 0.5937 15.08MM
Tap Square 0.5310
Tap Type Pipe
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
