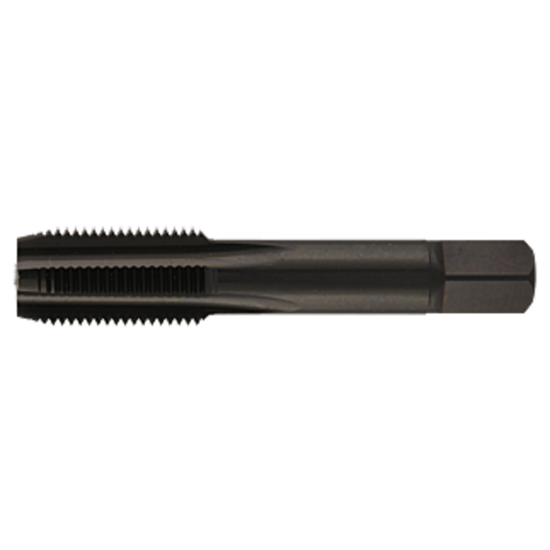

YMW 383301TIN 1/8-27.00TPI Pipe Straight Flute Pipe HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383301TIN
Delivery date: 3-5 days
$42.78

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Straight Flute Pipe
Package Size 1
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State California
Dimensional Specifications
Thread Type NPSM/NPSF
Tool Material Steel
Drill Range 0.3476 8.83MM
Tap Square 0.2340
Flutes/Inserts 4
Dimension Standard ANSI/ANSI
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 2.1250 53.98MM
Tap Style Pipe Straight Flute
Thread Size 1/8"
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Tap Type Pipe
Shank/Pilot Dia 0.3120 7.92MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
