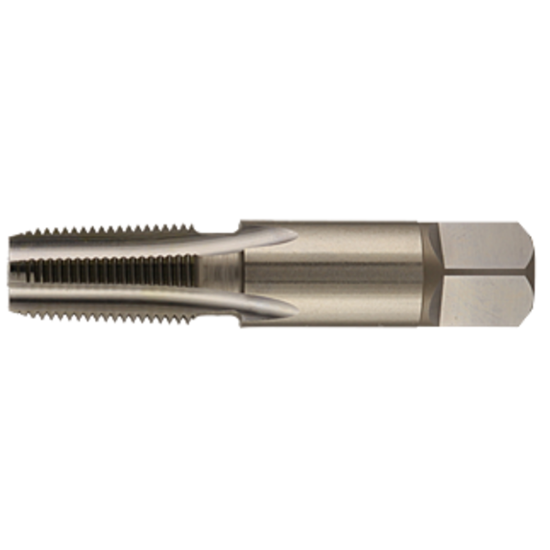

YMW 383228 1/4-18.00TPI Pipe Straight Flute Pipe HSS Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383228
Delivery date: 3-5 days
$67.45

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State California
Application Pipe Tapping, Straight Flute Pipe, Tapping
Package Size 1
Coating Nitride
Performance Rating High Performance
Dimensional Specifications
Overall Len 2.4370 61.90MM
Tap Style Pipe Straight Flute
Thread Size 1/4"
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Flutes/Inserts 4
Length Type Standard
Flute Direction STRAIGHT
Tap Type Pipe
Thread Pitch 18.00TPI
Thread Limit PIPE
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
