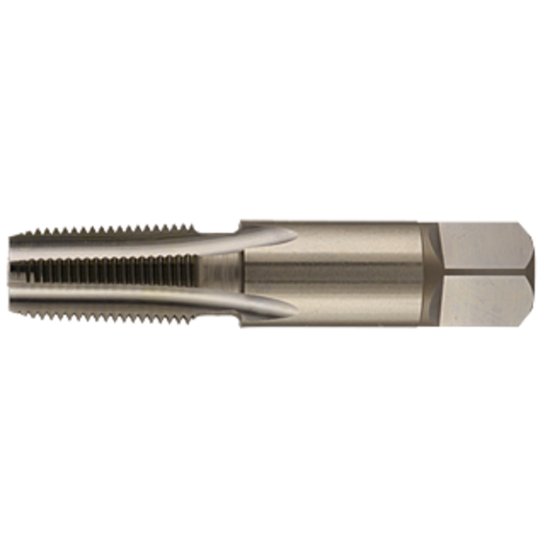

Picture of YMW 383228 1/4-18.00TPI Pipe Straight Flute Pipe HSS Nitride

YMW 383228 1/4-18.00TPI Pipe Straight Flute Pipe HSS Nitride

Part Number: YMW383228

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173603
Vendor: Sussex Tool and Supply
$78.13
YMW 1/4"x18.00TPI Pipe Straight Flute Pipe HSS Nitride PIPE NPT/NPTF/ANPT Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Nitride
Overall Length 2.4370 61.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5620 14.27MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Thread Size 1/4"
Thread Limit PIPE
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4378 11.12MM
Tap Square 0.4210
