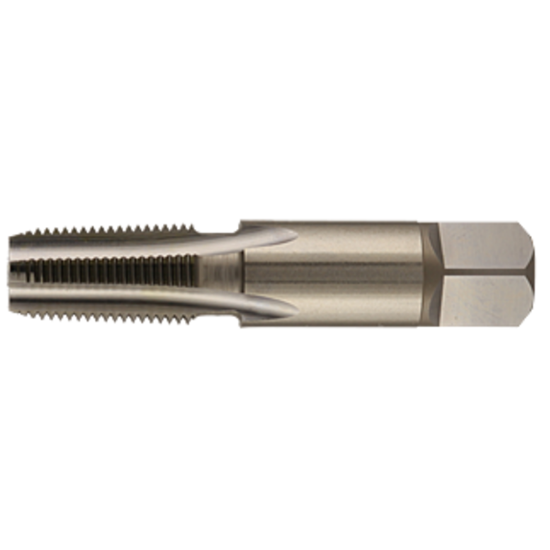

YMW 383226 1/8-27.00TPI Pipe Straight Flute Pipe HSS Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383226
Delivery date: 3-5 days
$54.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Shipping State California
Performance Rating High Performance
Coating Nitride
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Thread Type NPT/NPTF/ANPT
Shank/Pilot Dia 0.4370 11.10MM
Length Type Standard
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tool Material Steel
Drill Range 0.3319 8.43MM
Tap Square 0.2340
Overall Len 2.1250 53.98MM
Tap Style Pipe Straight Flute
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
