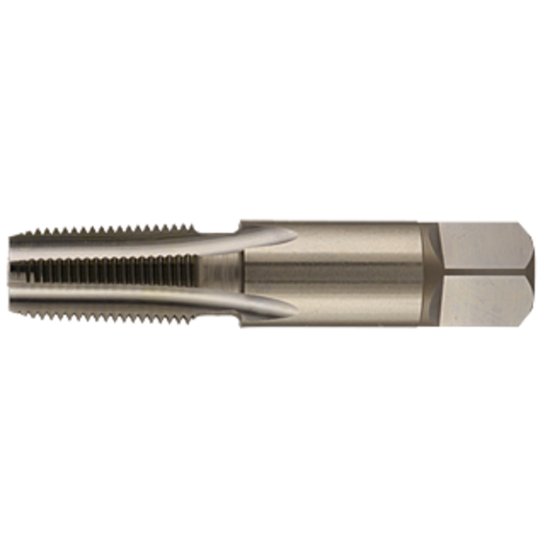

Picture of YMW 383226 1/8-27.00TPI Pipe Straight Flute Pipe HSS Nitride

YMW 383226 1/8-27.00TPI Pipe Straight Flute Pipe HSS Nitride

Part Number: YMW383226
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$62.45
SKU: 1173601

Description

YMW 1/8"x27.00TPI Pipe Straight Flute Pipe HSS Nitride PIPE NPT/NPTF/ANPT Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.4370 11.10MM
Flutes/Inserts 4
Thread Pitch 27.00TPI
Thread Size 1/8"
Tap Drill Range 0.3319 8.43MM
Tap Square 0.2340
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Nitride
Standards & Identification
Dimension Standard ANSI/ANSI
