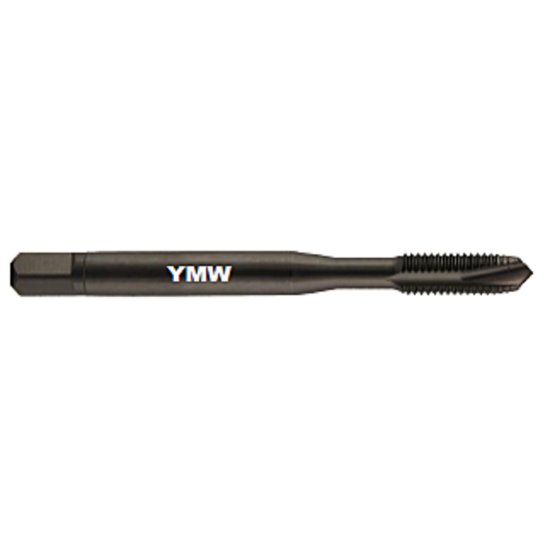

Picture of YMW 382997TIn 1-8.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

YMW 382997TIn 1-8.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Part Number: YMW382997TIN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$254.27
SKU: 1173492

Description

YMW 1"x8.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN H4/GH4 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Dimensions & Sizing
Overall Length 5.1250 130.18MM
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 3
Thread Pitch 8.00TPI
Thread Size 1"
Tap Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Square 0.6000
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
