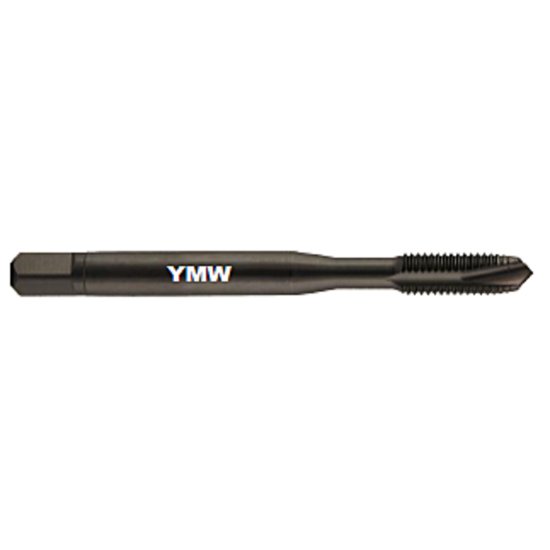

Picture of YMW 382997TICN 1-8.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiCN

YMW 382997TICN 1-8.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiCN

Part Number: YMW382997TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173491
Vendor: Sussex Tool and Supply
$221.39
YMW 1"x8.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiCN H4/GH4 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating TICN
Overall Length 5.1250 130.18MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Square 0.6000
Tap Chamfer 3.0P-5.0P
