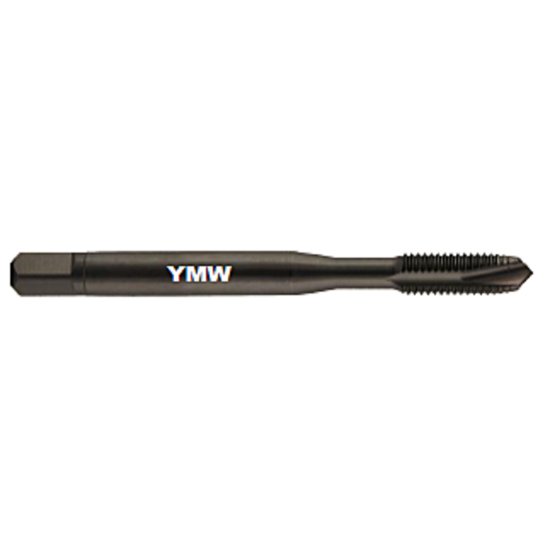

Picture of YMW 382996TIn 7/8-14.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

YMW 382996TIn 7/8-14.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Part Number: YMW382996TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173489
Vendor: Sussex Tool and Supply
$159.97
YMW 7/8"x14.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN H4/GH4 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating TIN
Overall Length 4.6880 119.08MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/8"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Tap Chamfer 3.0P-5.0P
