  • YMW 382995B 7/8-9.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

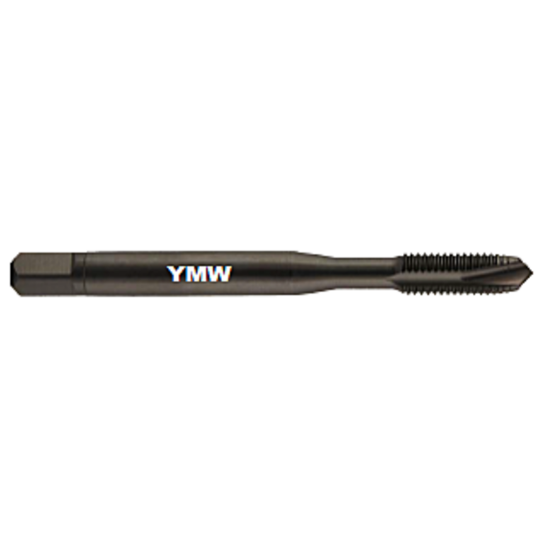

Picture of YMW 382995B 7/8-9.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

YMW 382995B 7/8-9.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382995B
Delivery date: 3-5 days
$140.58

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State California
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 9.00TPI
Overall Len 4.6880 119.08MM
Flutes/Inserts 3
Flute Direction R - Right
Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Length Type Standard
Thread Size 7/8"
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Thread Type NC/UNC
Thread Limit H4/GH4
Shank/Pilot Dia 0.6970 17.70MM
Tap Style Cut Spiral Point
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Tap Square 0.5230
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
