  • YMW 382903 No.5-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

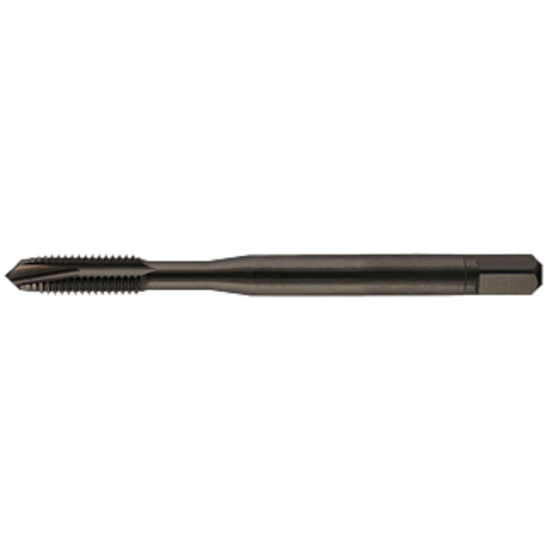

Picture of YMW 382903 No.5-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

YMW 382903 No.5-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382903
Delivery date: 3-5 days
$18.88

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State California
Package Size 1
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Thread Pitch 40.00TPI
Overall Len 1.9370 49.20MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Thread Size No.5
Thread Type NC/UNC
Thread Limit H3/GH3
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
