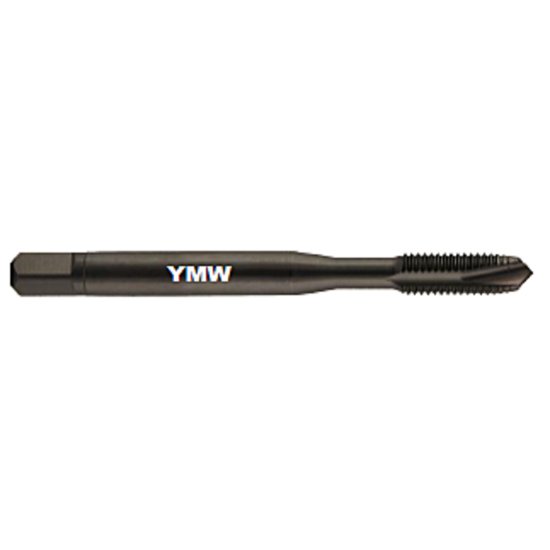

Picture of YMW 382706 1-3/8-12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

YMW 382706 1-3/8-12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Part Number: YMW382706

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173409
Vendor: Sussex Tool and Supply
$371.46
YMW 1-3/8"x12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide H5/GH5 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 6.0620 153.97MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.1024 28.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1-3/8"
Thread Limit H5/GH5
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 1.2882 32.72MM - 1.3098 33.27MM
Tap Square 0.8660
Tap Chamfer 3.0P-5.0P
