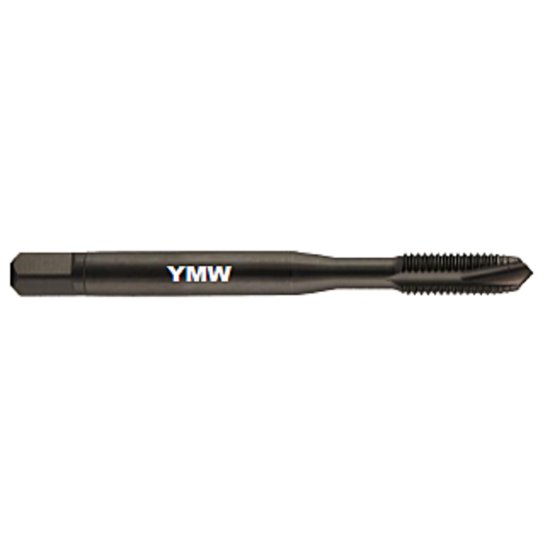

Picture of YMW 382702 1-1/4-7.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

YMW 382702 1-1/4-7.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Part Number: YMW382702

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173406
Vendor: Sussex Tool and Supply
$320.61
YMW 1-1/4"x7.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide H6/GH6 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 5.7500 146.05MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0210 25.93MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 7.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-1/4"
Thread Limit H6/GH6
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 1.1012 27.97MM - 1.1386 28.92MM
Tap Square 0.7800
Tap Chamfer 3.0P-5.0P
