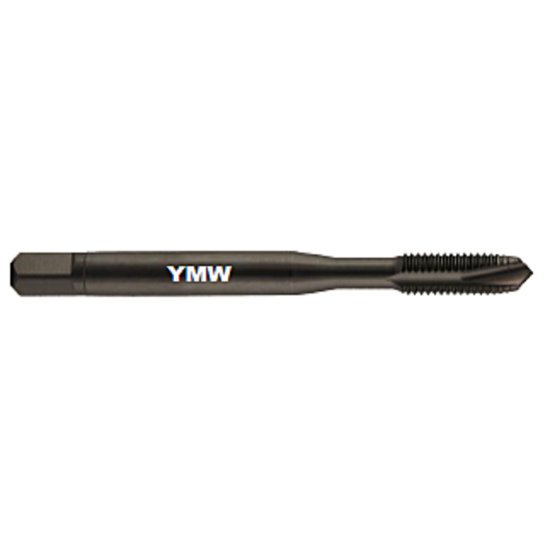

Picture of YMW 382699 7/8-14.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

YMW 382699 7/8-14.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Part Number: YMW382699

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173403
Vendor: Sussex Tool and Supply
$140.77
YMW 7/8"x14.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide H6/GH6 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 4.6880 119.08MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/8"
Thread Limit H6/GH6
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Tap Chamfer 3.0P-5.0P
