  • YMW 382691TIN 7/16-20.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

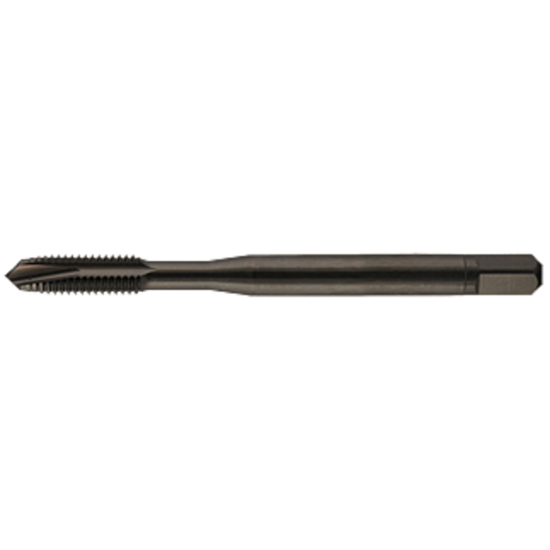

Picture of YMW 382691TIN 7/16-20.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

YMW 382691TIN 7/16-20.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382691TIN
Delivery date: 3-5 days
$44.50

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Coating TiN
Dimensional Specifications
Thread Size 7/16"
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Shank/Pilot Dia 0.3230 8.20MM - P
Overall Len 3.1600 80.26MM
Flutes/Inserts 3
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Thread Pitch 20.00TPI
Flute Direction R - Right
Length Type Standard
Thread Limit H6/GH6
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
