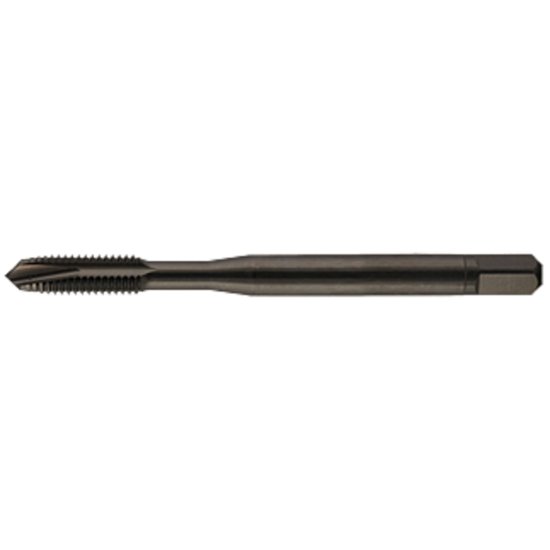

Picture of YMW 382680TICN 7/16-20.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V TiCN

YMW 382680TICN 7/16-20.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V TiCN

Part Number: YMW382680TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173374
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW 7/16"x20.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V TiCN GH7 +0.0035 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating TICN
Overall Length 3.1600 80.26MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit GH7 +0.0035
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tap Chamfer 3.0P-5.0P
