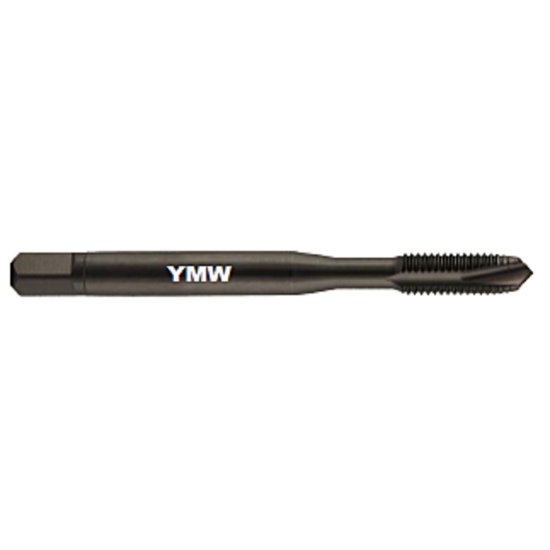

Picture of YMW 382679 1-12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

YMW 382679 1-12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Part Number: YMW382679

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173371
Vendor: Sussex Tool and Supply
$204.89
YMW 1"x12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide H4/GH4 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 5.1250 130.18MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.5710
Tap Chamfer 3.0P-5.0P
