  • YMW 382643TIN 1/4-20.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

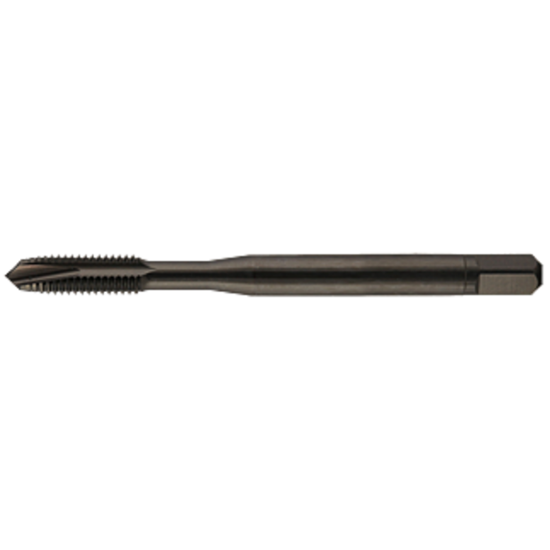

Picture of YMW 382643TIN 1/4-20.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

YMW 382643TIN 1/4-20.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382643TIN
Delivery date: 3-5 days
$21.64

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Made In USA No
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Flute Direction R - Right
Length Type Standard
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tool Material Steel
Thread Size 1/4"
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Agricultural YES
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
