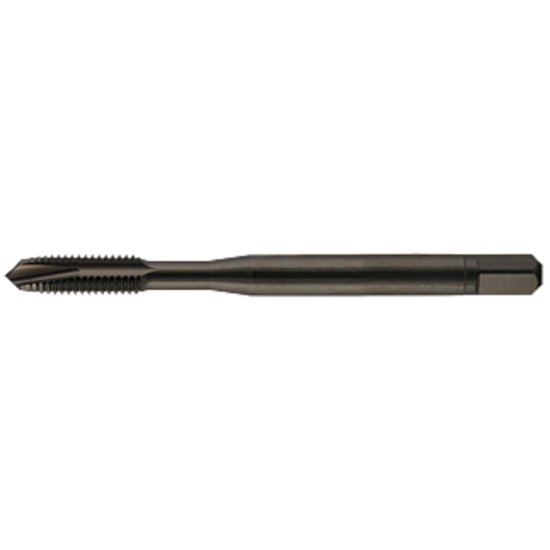

Picture of YMW 382634TIn No.4-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

YMW 382634TIn No.4-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Part Number: YMW382634TIN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1173297

Description

YMW No.4x40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN H5/GH5 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
