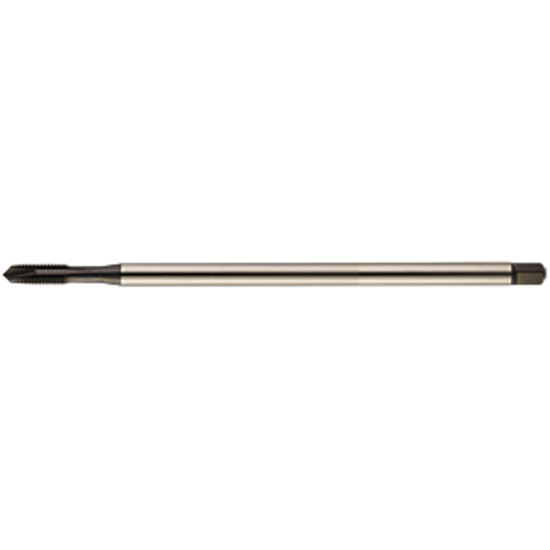

YMW 382518 3/8-24.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382518
Delivery date: 3-5 days
$58.88

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State California
Dimensional Specifications
Tool Material Steel
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Thread Size 3/8"
Dimension Standard ANSI/6"
Tap Square 0.2860
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Long
Overall Len 6.0000 152.40MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
