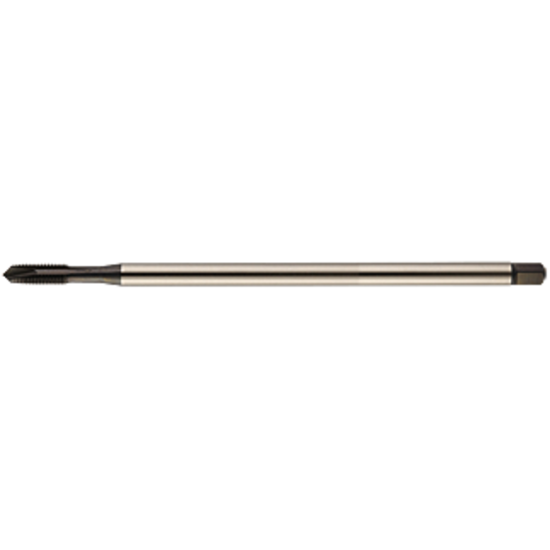

YMW 382517 3/8-16.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382517
Delivery date: 3-5 days
$58.88

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Package Size 1
Coating Steam Oxide
Dimensional Specifications
Thread Pitch 16.00TPI
Tool Material Steel
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Point
Flute Direction R - Right
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.3810 9.68MM
Length Type Long
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
