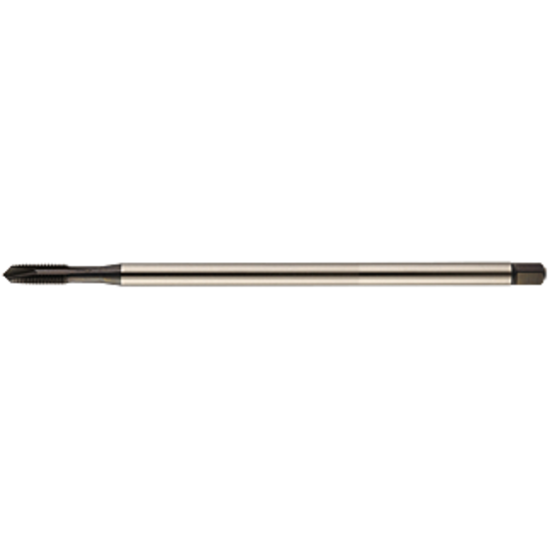

YMW 382510 No.10-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382510
Delivery date: 3-5 days
$49.76

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State California
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Size No.10
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 6.0000 152.40MM
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Flute Direction R - Right
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tool Material Steel
Flutes/Inserts 3
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.1940 4.93MM
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
