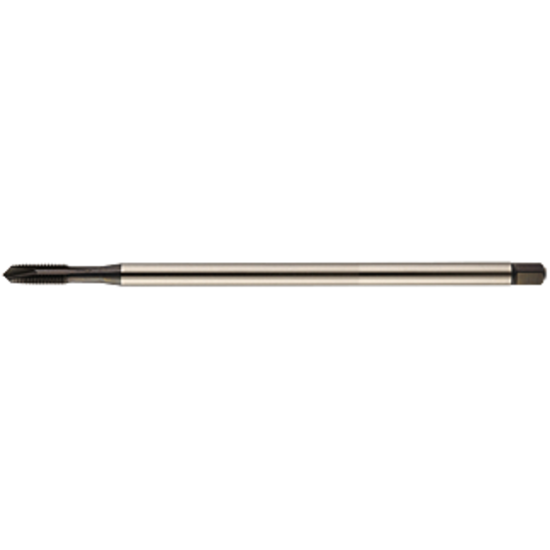

YMW 382507 No.8-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382507
Delivery date: 3-5 days
$57.41

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State California
Package Size 1
Dimensional Specifications
Thread Size No.8
Overall Len 6.0000 152.40MM
Tap Chamfer 3.5P-5.0P
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Length Type Long
Flutes/Inserts 3
Dimension Standard ANSI/6"
Thread Pitch 32.00TPI
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Agricultural YES
