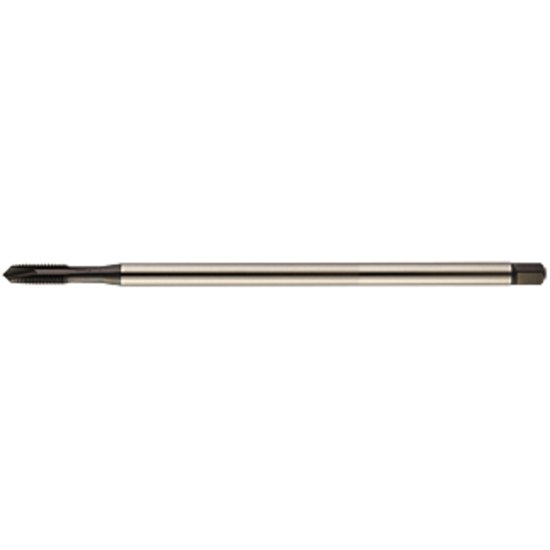

Picture of YMW 382507 No.8-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide Pulley Long

YMW 382507 No.8-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide Pulley Long

Part Number: YMW382507

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173231
Vendor: Sussex Tool and Supply
$57.49
YMW No.8x32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/6"
Tap Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Tap Chamfer 3.5P-5.0P
