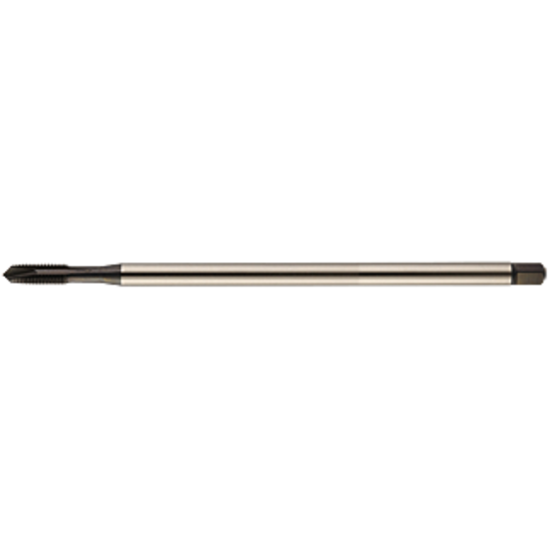

YMW 382505 No.6-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382505
Delivery date: 3-5 days
$65.00

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Coating Steam Oxide
Made In USA No
Shipping State California
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 6.0000 152.40MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Thread Type NC/UNC
Dimension Standard ANSI/6"
Length Type Long
Thread Size No.6
Flutes/Inserts 3
Thread Limit H3/GH3
Flute Direction R - Right
Tap Square 0.1100
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Agricultural YES
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
