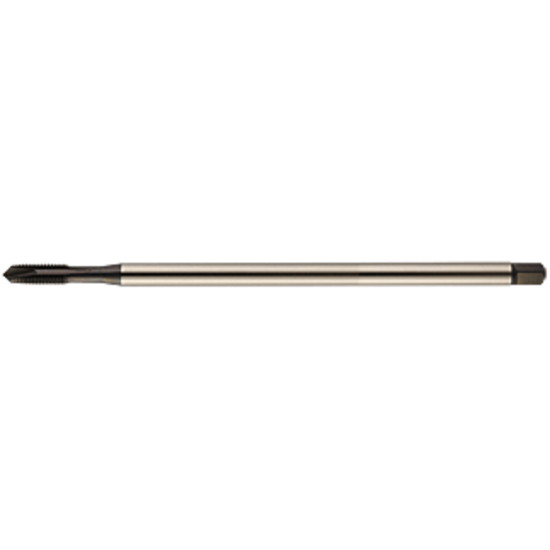

YMW 382501 No.4-40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382501
Delivery date: 3-5 days
$76.55

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State California
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Flutes/Inserts 2
Length Type Long
Thread Size No.4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 40.00TPI
Overall Len 6.0000 152.40MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Flute Direction R - Right
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Tap Square 0.1100
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
