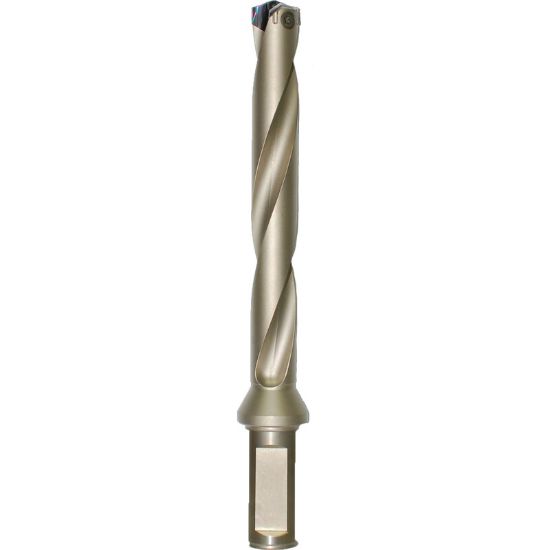

YG-1 ZG0303 .9843 Min DIA 1.0035 Max DIA I-Dream Drill Holder, FLANGED Shank (3XD)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1ZG0303
Delivery date: 3-5 days
$264.29

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.9843 25.00MM - 63/64
Tool Material Steel
Flute Length 3.5000 88.90MM
Flutes/Inserts 2
Included Angle 140°
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.8750 174.63MM
Cutter Dia 0.9844 25.00MM - 63/64
Dia Deep 3.0XD
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 1.0035 25.49MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
