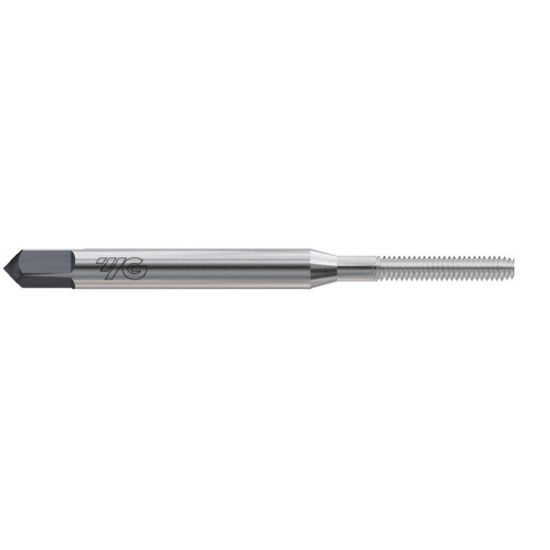

YG-1 ZFM12 No.0000-160.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZFM12
Delivery date: 3-5 days
$65.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Tap Chamfer 1.5P-2.0P
Tap Type Bottoming
Thread Limit H3/GH3
Drill Range 0.0156 0.40MM
Length Type Standard
Tap Style Roll Form
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Thread Pitch 160.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Size No.0000
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
Aerospace Yes
Medical Yes
