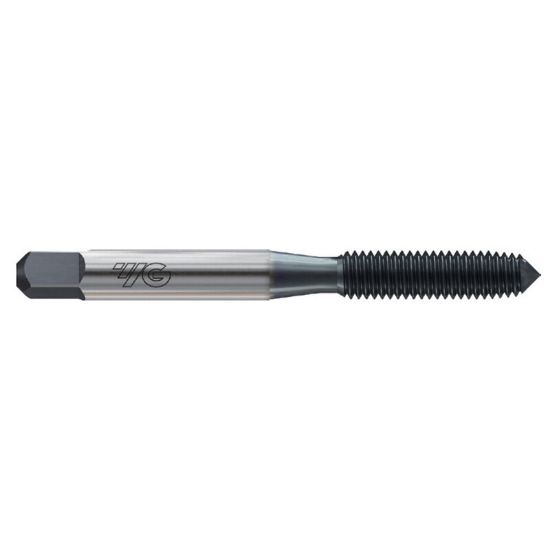

YG-1 ZC420 M10-1.50MM Roll Form Plug 1.5P-2.0P HSSE-V3 TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZC420
Delivery date: 3-5 days
$23.21

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Coating TiCN
Package Size 1
Dimensional Specifications
Thread Pitch 1.50MM
Thread Limit D10
Tool Material Steel
Overall Len 2.9370 74.60MM
Length Type Standard
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Thread Size M10
Thread Type Metric
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Shank/Pilot Dia 0.3810 9.68MM
Tap Style Roll Form
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
