  • YG-1 ZB369 M8-1.25MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

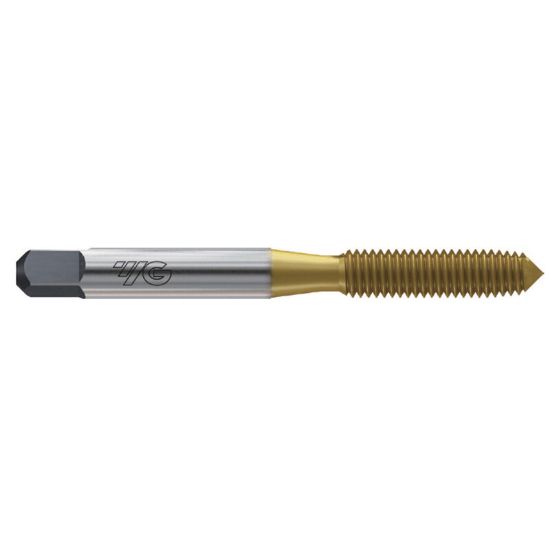

Picture of YG-1 ZB369 M8-1.25MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 ZB369 M8-1.25MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZB369
Delivery date: 3-5 days
$17.28

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Bottom Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating TiN
Package Size 1
Dimensional Specifications
Thread Size M8
Tap Square 0.2380
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Thread Pitch 1.25MM
Tool Material Steel
Thread Limit D9
Tap Chamfer 1.5P-2.0P
Thread Type Metric
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
