  • YG-1 ZB133 M2-0.40MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

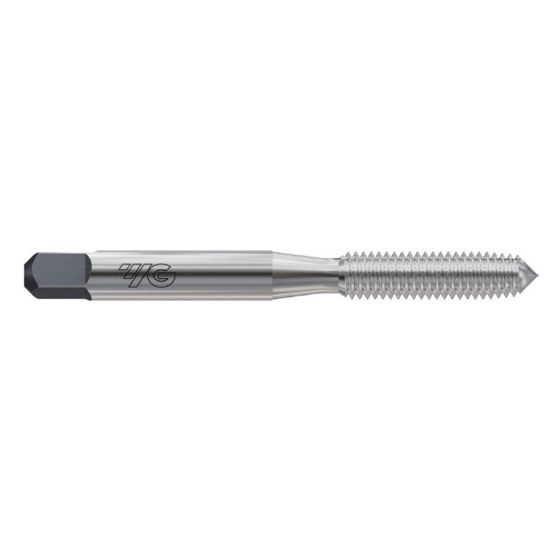

Picture of YG-1 ZB133 M2-0.40MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 ZB133 M2-0.40MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZB133
Delivery date: 3-5 days
$18.23

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Thread Type Metric
Length Type Standard
Tap Style Roll Form
Dimension Standard ANSI/ANSI
Thread Size M2
Tool Material Steel
Tap Square 0.1100
Tap Type Bottoming
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Chamfer 1.5P-2.0P
Thread Limit D3
Thread Pitch 0.40MM
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
