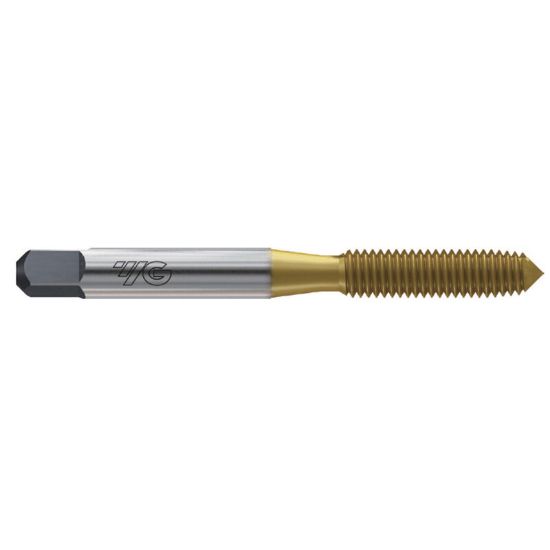

Picture of YG-1 ZA50A M12-1.75MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 ZA50A M12-1.75MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZA50A
Delivery date: 3-5 days
$31.85

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Roll Form Tapping, Plug Tapping, Tapping, Through Hole Tapping
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
Thread Limit D11
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Thread Pitch 1.75MM
Thread Size M12
Dimension Standard ANSI/ANSI
Overall Len 3.3800 85.85MM
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
