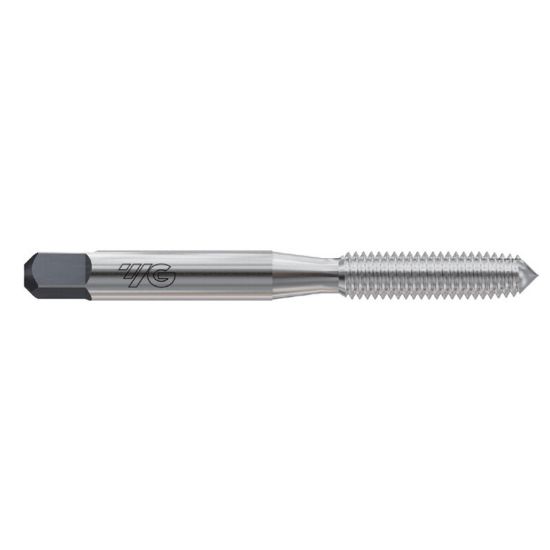

Picture of YG-1 ZA318 M6-1.00MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 ZA318 M6-1.00MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZA318
Delivery date: 3-5 days
$15.77

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Made In USA No
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Tap Type Plug
Tool Material Steel
Thread Type Metric
Dimension Standard ANSI/ANSI
Thread Size M6
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Tap Style Roll Form
Thread Pitch 1.00MM
Thread Limit D8
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
