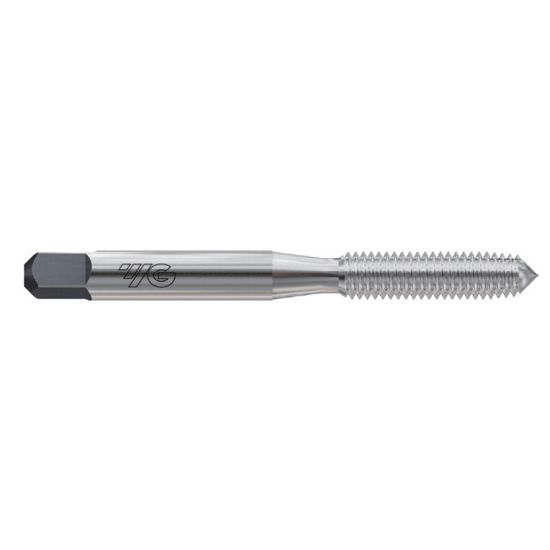

Picture of YG-1 ZA287 M5-0.80MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 ZA287 M5-0.80MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZA287
Delivery date: 3-5 days
$13.99

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Tapping, Through Hole Tapping, Plug Tapping, Roll Form Tapping
Performance Rating General Performance
Made In USA No
Coating TiN
Dimensional Specifications
Thread Limit D7
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Shank/Pilot Dia 0.1940 4.93MM
Thread Size M5
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Length Type Standard
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Type Metric
Tap Square 0.1520
Tap Type Plug
Thread Pitch 0.80MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
