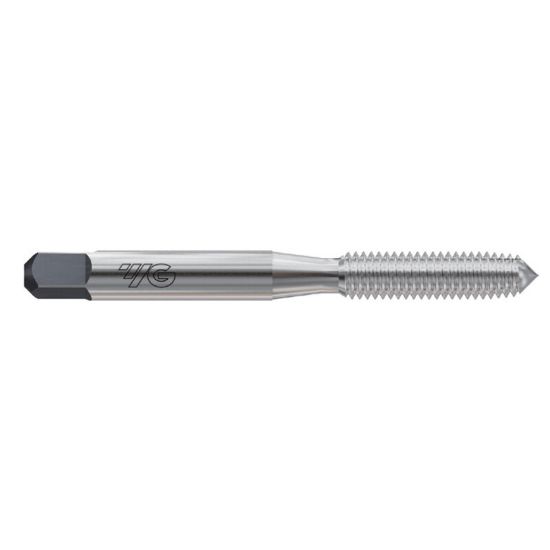

Picture of YG-1 ZA246 M4-0.70MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 ZA246 M4-0.70MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ZA246
Delivery date: 3-5 days
$13.77

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Roll Form Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 0.70MM
Dimension Standard ANSI/ANSI
Thread Size M4
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tool Material Steel
Thread Type Metric
Thread Limit D6
Tap Square 0.1520
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Length Type Standard
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Roll Form
Overall Len 2.1250 53.98MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
