  • YG-1 Z950A M12-1.75MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

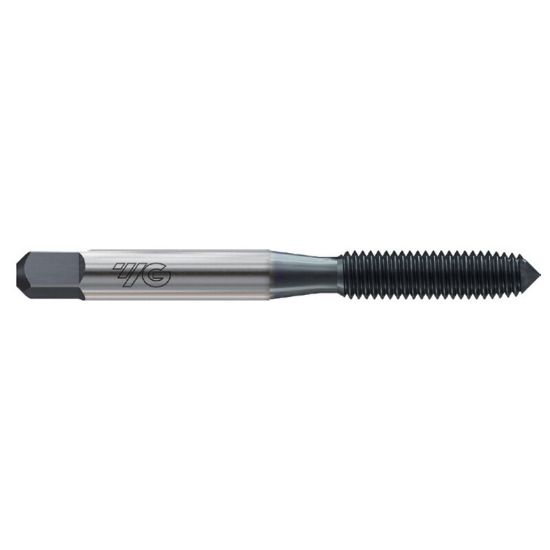

Picture of YG-1 Z950A M12-1.75MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z950A M12-1.75MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z950A
Delivery date: 3-5 days
$27.12

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Style Roll Form
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Thread Limit D11
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Thread Size M12
Overall Len 3.3800 85.85MM
Tool Material Steel
Tap Type Bottoming
Thread Type Metric
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3670 9.32MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
