  • YG-1 Z9420 M10-1.50MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

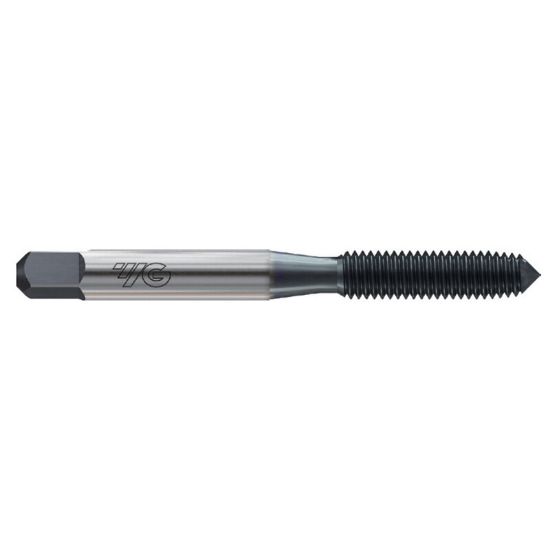

Picture of YG-1 Z9420 M10-1.50MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z9420 M10-1.50MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z9420
Delivery date: 3-5 days
$20.17

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Shipping State Illinois
Package Size 1
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Thread Type Metric
Thread Pitch 1.50MM
Thread Limit D10
Tool Material Steel
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Thread Size M10
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
