  • YG-1 Z9318 M6-1.00MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

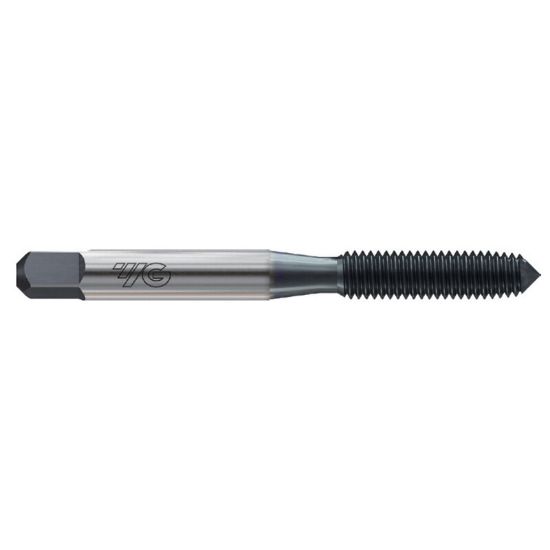

Picture of YG-1 Z9318 M6-1.00MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z9318 M6-1.00MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z9318
Delivery date: 3-5 days
$13.56

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Length Type Standard
Tap Type Bottoming
Thread Type Metric
Tool Material Steel
Dimension Standard ANSI/ANSI
Thread Pitch 1.00MM
Thread Limit D8
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Size M6
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
