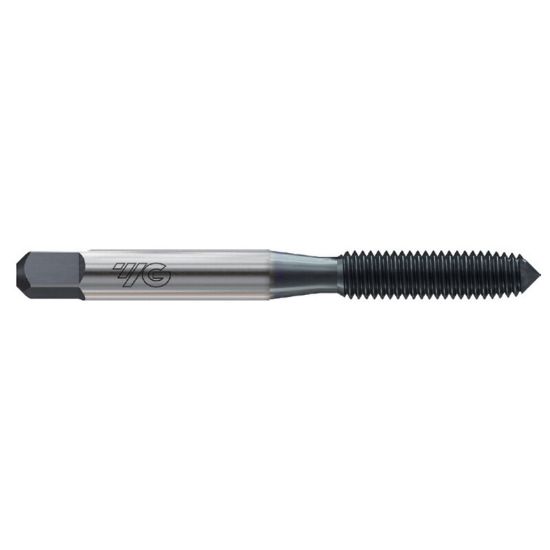

Picture of YG-1 Z9287 M5-0.80MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z9287 M5-0.80MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z9287
Delivery date: 3-5 days
$11.72

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Length Type Standard
Tap Type Bottoming
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 1.5P-2.0P
Thread Size M5
Overall Len 2.3750 60.33MM
Machine Side Connection Type Tap Collet
Thread Type Metric
Dimension Standard ANSI/ANSI
Thread Limit D7
Tool Material Steel
Thread Pitch 0.80MM
Tap Square 0.1520
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
