  • YG-1 Z9133 M2-0.40MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

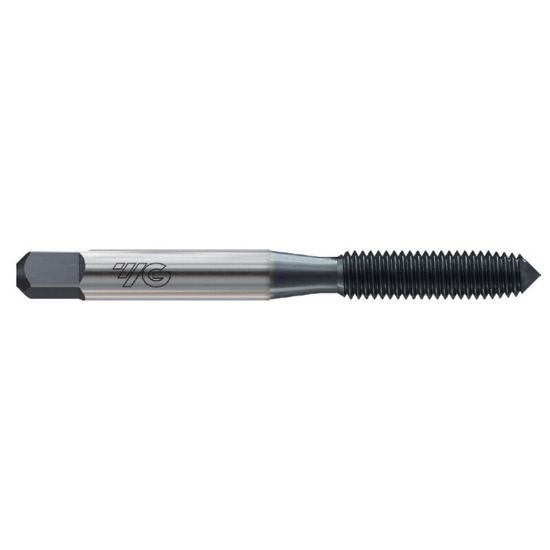

Picture of YG-1 Z9133 M2-0.40MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z9133 M2-0.40MM Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z9133
Delivery date: 3-5 days
$15.84

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Thread Size M2
Thread Limit D3
Tool Material Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Thread Pitch 0.40MM
Thread Type Metric
Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Tap Chamfer 1.5P-2.0P
Dimension Standard ANSI/ANSI
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
