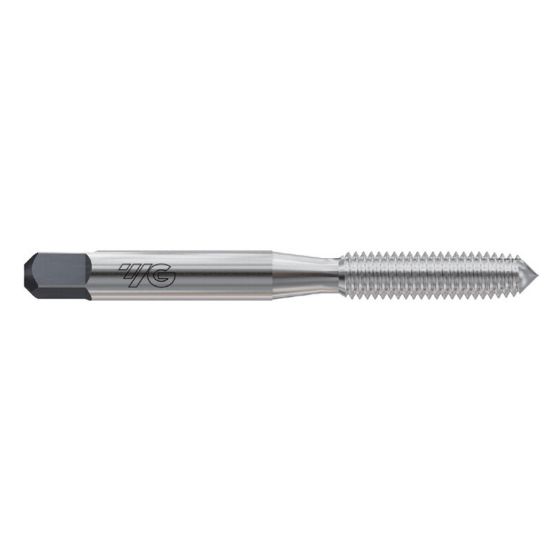

Picture of YG-1 Z850A M12-1.75MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z850A M12-1.75MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z850A
Delivery date: 3-5 days
$27.12

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Package Size 1
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit D11
Tool Material Steel
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Thread Type Metric
Dimension Standard ANSI/ANSI
Tap Chamfer 4.0P-5.0P
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Thread Size M12
Overall Len 3.3800 85.85MM
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
