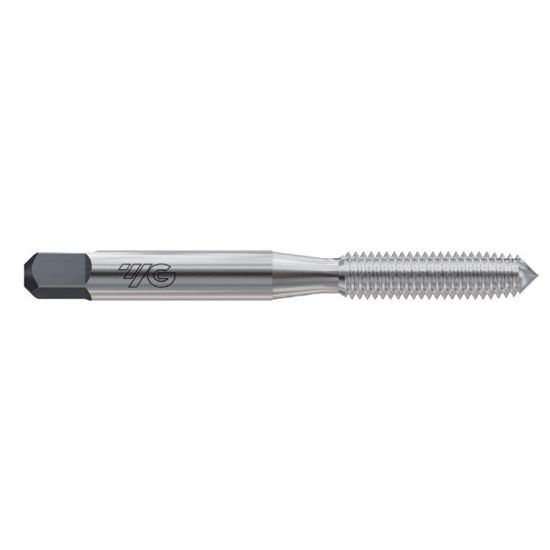

Picture of YG-1 Z8420 M10-1.50MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z8420 M10-1.50MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z8420
Delivery date: 3-5 days
$20.17

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Coating TiN
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type Metric
Machine Side Connection Type Tap Collet
Thread Size M10
Dimension Standard ANSI/ANSI
Thread Pitch 1.50MM
Thread Limit D10
Tool Material Steel
Overall Len 2.9370 74.60MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tap Style Roll Form
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
