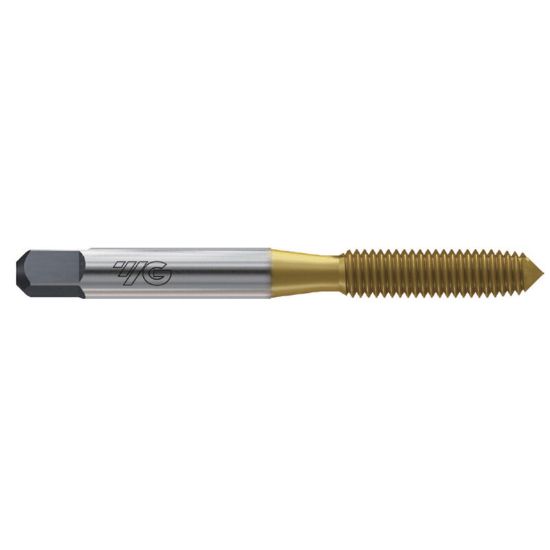

Picture of YG-1 Z8318 M6-1.00MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z8318 M6-1.00MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z8318
Delivery date: 3-5 days
$13.56

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Length Type Standard
Thread Size M6
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Dimension Standard ANSI/ANSI
Thread Limit D8
Shank/Pilot Dia 0.2550 6.48MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Style Roll Form
Thread Type Metric
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
