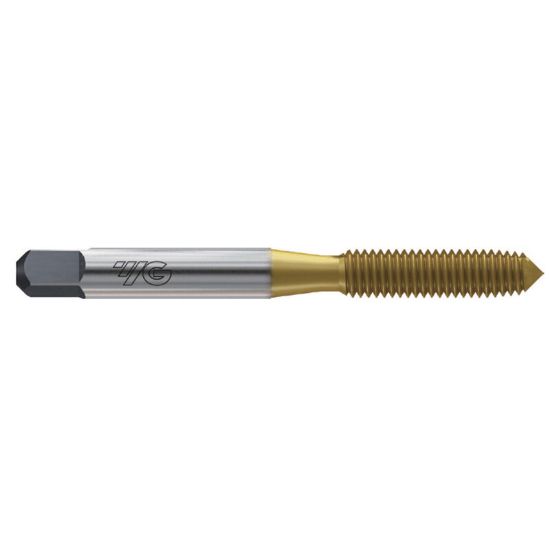

Picture of YG-1 Z8205 M3-0.50MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z8205 M3-0.50MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z8205
Delivery date: 3-5 days
$13.93

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Made In USA No
Application Roll Form Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Tool Material Steel
Tap Square 0.1100
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Length Type Standard
Thread Size M3
Thread Type Metric
Overall Len 1.9370 49.20MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Type Plug
Dimension Standard ANSI/ANSI
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
