  • YG-1 Z7445 5/16-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

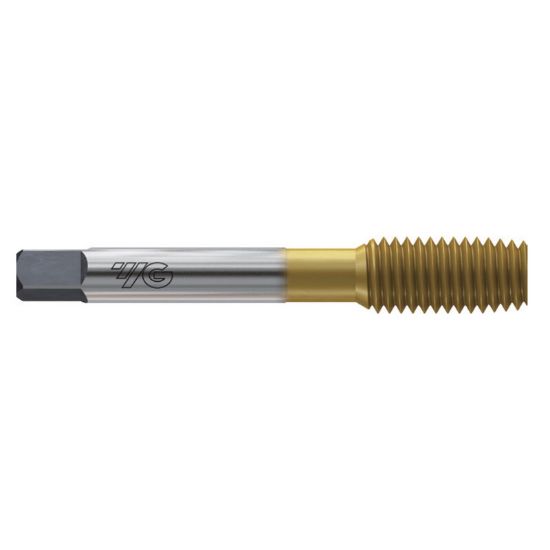

Picture of YG-1 Z7445 5/16-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z7445 5/16-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z7445
Delivery date: 3-5 days
$15.09

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Coating TiN
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Pitch 18.00TPI
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Thread Limit H5/GH5
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Thread Size 5/16"
Thread Type NC/UNC
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
