  • YG-1 Z7245 No.6-32.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

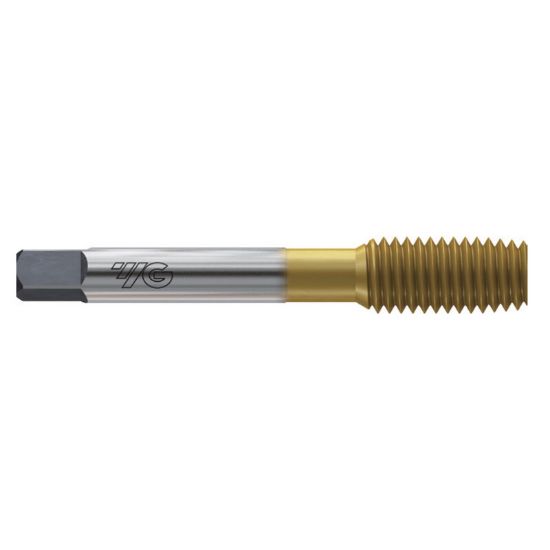

Picture of YG-1 Z7245 No.6-32.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z7245 No.6-32.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z7245
Delivery date: 3-5 days
$12.55

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Coating TiN
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Tap Chamfer 1.5P-2.0P
Thread Size No.6
Thread Type NC/UNC
Overall Len 2.0000 50.80MM
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Square 0.1100
Thread Limit H5/GH5
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
