  • YG-1 Z5487 3/8-16.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

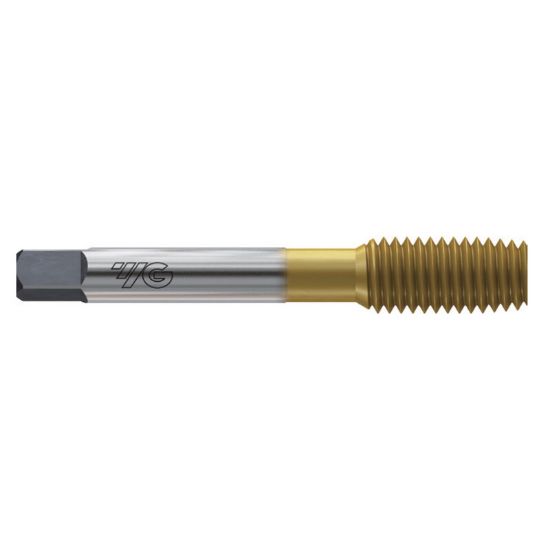

Picture of YG-1 Z5487 3/8-16.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z5487 3/8-16.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z5487
Delivery date: 3-5 days
$19.92

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Over Sized Tapping, Through Hole Tapping, Roll Form Tapping, Tapping
Coating TiN
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 16.00TPI
Machine Side Connection Type Tap Collet
Thread Limit GH7 +0.0035
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Tap Style Over Sized Roll Form
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Tool Material Steel
Overall Len 2.9370 74.60MM
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
