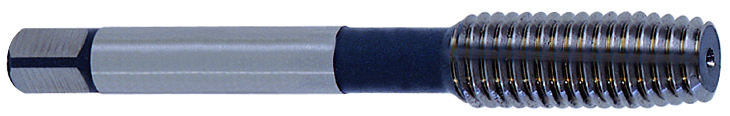

Picture of YG-1 Z4628 9/16-18.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z4628 9/16-18.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Part Number: YG-Z4628
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
9/16" × 18.00TPI Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167685
Vendor: Sussex Tool and Supply
$66.40

Description

YG-1 Z4628 9/16"x18.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated H8/GH8 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Roll Form
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 3.5900 91.19MM
Shank/Pilot Dia 0.4290 10.90MM
Thread Pitch 18.00TPI
Thread Size 9/16"
Tap Drill Range 0.5339 13.56MM - 0.5413 13.75MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <30HRC Steel, Copper, Titanium
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H8/GH8
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Standards & Identification
Dimension Standard ANSI/ANSI
