  • YG-1 Z4588 1/2-20.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

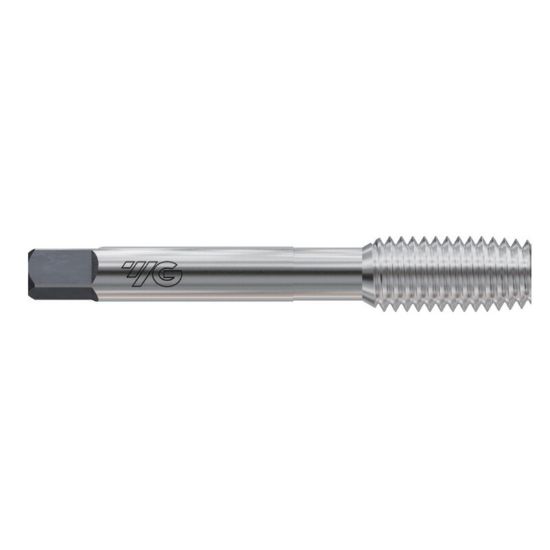

Picture of YG-1 Z4588 1/2-20.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z4588 1/2-20.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z4588
Delivery date: 3-5 days
$31.05

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Thread Size 1/2"
Thread Pitch 20.00TPI
Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Length Type Standard
Tap Style Roll Form
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Chamfer 4.0P-5.0P
Thread Limit H8/GH8
Tap Type Plug
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
