  • YG-1 Z4265 No.6-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

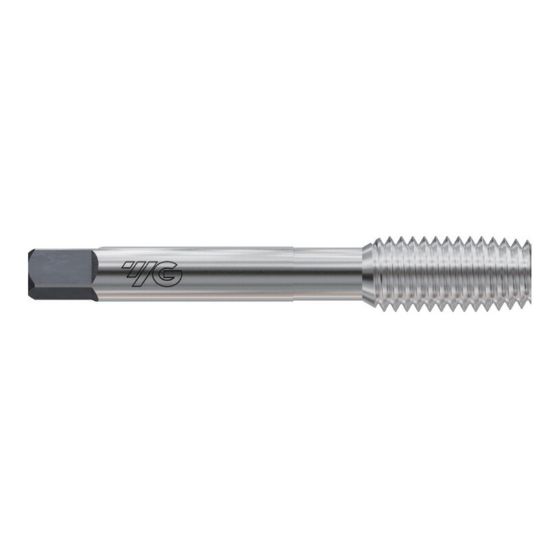

Picture of YG-1 Z4265 No.6-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z4265 No.6-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z4265
Delivery date: 3-5 days
$10.33

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Drill Range 0.1252 3.18MM - 0.1283 3.26MM
Tap Chamfer 4.0P-5.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Limit H5/GH5
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Size No.6
Tool Material Steel
Thread Pitch 40.00TPI
Tap Type Plug
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
